Skinning

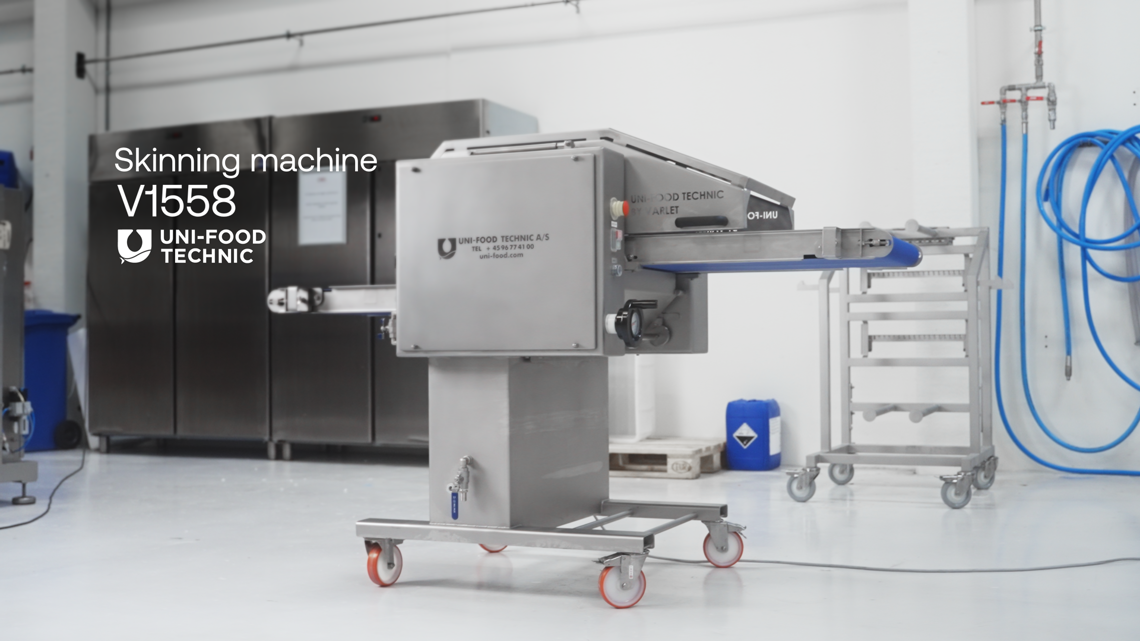

Skinning machines V1558 & V1658

The skinning machines V1558 and V1658 are double lane skinning machine that are designed to skin all types of fillets.

  • The machines have two pressing rollers that make it possible to process two fillets at the same time. The automatic skinning machines V1558 and V1658 can be provided with only one pressing roller to be used as single lane skinning machines.

  •   V1558 V1658
    Capacity Up to 50 fillets/min Up to 50 fillets/min
    Working range, length 250 – 650 mm 250 – 650 mm
    Working width 488 mm 595 mm
    Height, infeed belt 850 mm 850 mm
    Speed, infeed belt 17 m/min 17 m/min
    Height, outfeed belt 731 mm 731 mm
    Speed, outfeed belt 35 m/min 35 m/min
    Water consumption 11 L/min 11 L/min
    Power connection 3 x 400 V + PE, 50 Hz* 3 x 400 V + PE, 50 Hz*
    Power consumption 1.2 kW 1.2 kW
    Noise level 65 dB (A) 65 dB (A)



    * Please contact our sales team for other power connection possibilities

    • One pressing roller for single lane use

Double lane skinning machine for optimal capacity



The automatic skinning machine V1558 has a working width of 488 mm and the V1658 of 595 mm.

The robust skinning machine is easy to operate, and the skinning thickness can be easily adjusted.

The skinning options range from silver skinning and traditional skinning to deep skinning of fillets, pre and post rigor.

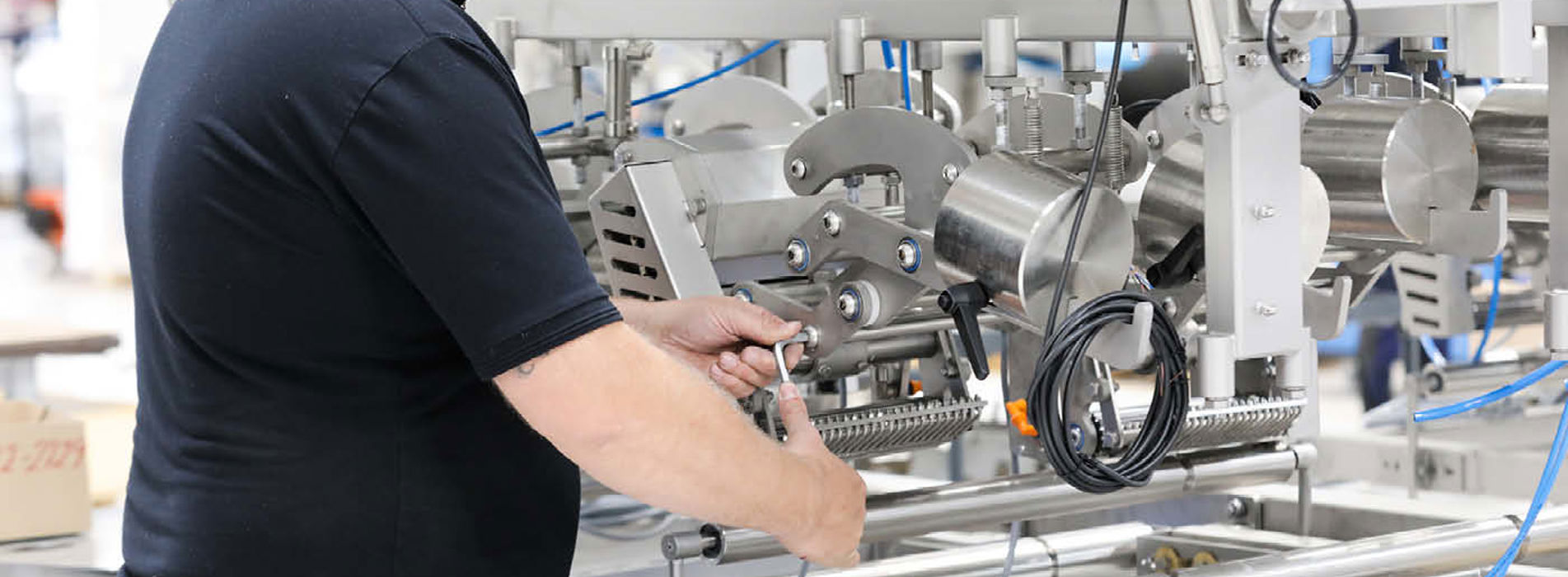

Service & aftersales

We do not only provide innovative processing equipment, we also provide our customers with service for maintenance of the purchased machinery.

We have created a global supply of spare parts and maintenance for all our products.

Ready to buy? Or just want to learn more?



Fill out the contact form, and we will contact you right away.
