Skinning

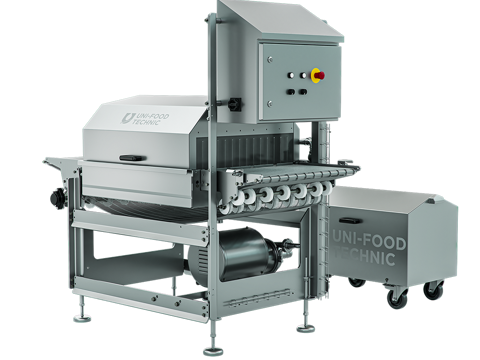

Skinning Machine V3668

The Skinning machine V3668 is made specially for skinning skin after deep skinning.

  • The machine has two pressing rollers that make it possible to process two fillets at the same time. The automatic skinning machine V3668 can be provided with only one pressing roller to be used as a single lane skinning machine.

  • Capacity Up to 50 fillets/min
    Working range, length 250 – 650 mm
    Working width 590 mm
    Height, infeed belt 1070 mm
    Speed, infeed belt First skinner: 17 m/min / Second skinner: 63 m/min
    Height, outfeed belt Upper belt: 1350 mm / Lower belt: 830 mm
    Speed, outfeed belt First skinner: 29 m/min / Second skinner: 78 m/min
    Water consumption 2 x 11 L/min
    Power connection 3 x 400 V + PE, 50 Hz*
    Power consumption 1.2 kW
    Noise level 65 dB (A)



    * Please contact our sales team for other power connection possibilities

Skinning deep skinned salmon skin



The automatic skinning machine allows processors who deep skin salmon to utilize the meat left on the skin by skinning the skin in a second skinner.



The skinning machine removes up to 100% of the meat from the skin, hereby creating a by-product of high value. The automatic skinning machine V3668 is a complete solution, and there is no need for more operators.



The skinning machine has a working belt width of 590 mm which makes it the perfect solution when you need to incorporate the machine in a fully automatic filleting line.



The V3668 is intended for deep skinning of salmon fillets, pre and post rigor, and it is easy to operate, programme and clean.

Service & aftersales

We do not only provide innovative processing equipment, we also provide our customers with service for maintenance of the purchased machinery.

We have created a global supply of spare parts and maintenance for all our products.
