Pin bone removal

Pin Bone Remover 500 Series

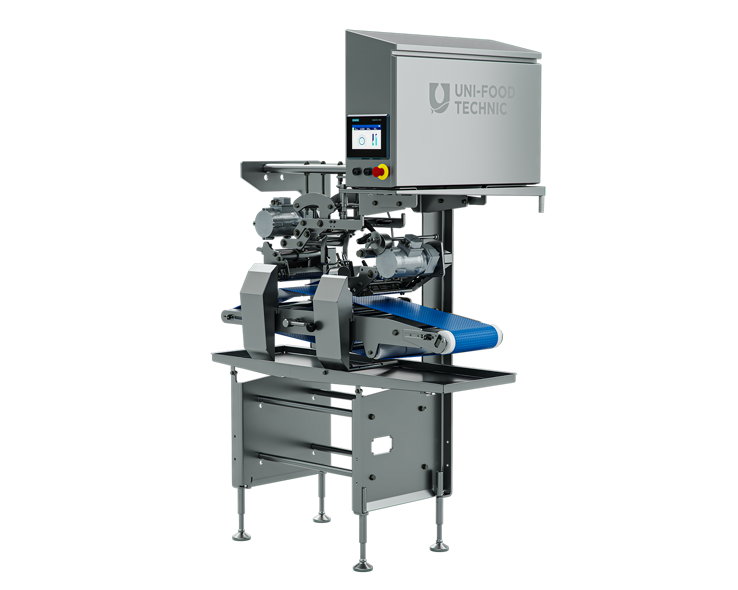

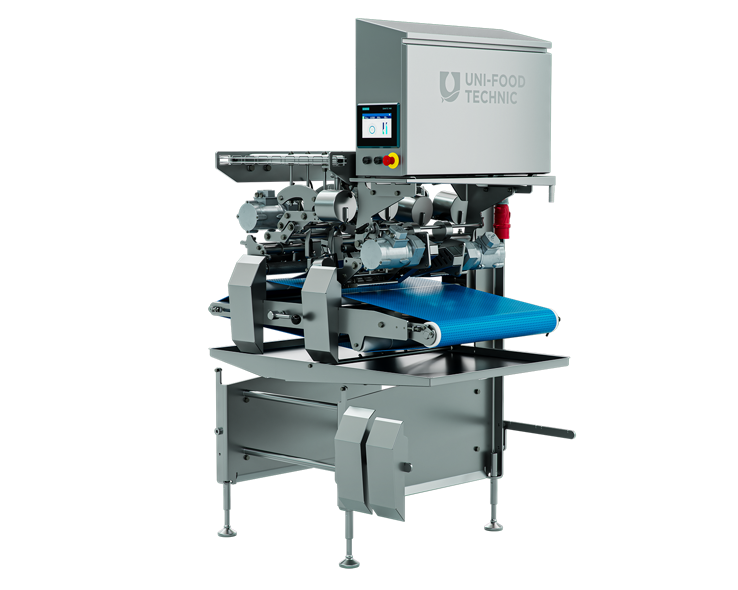

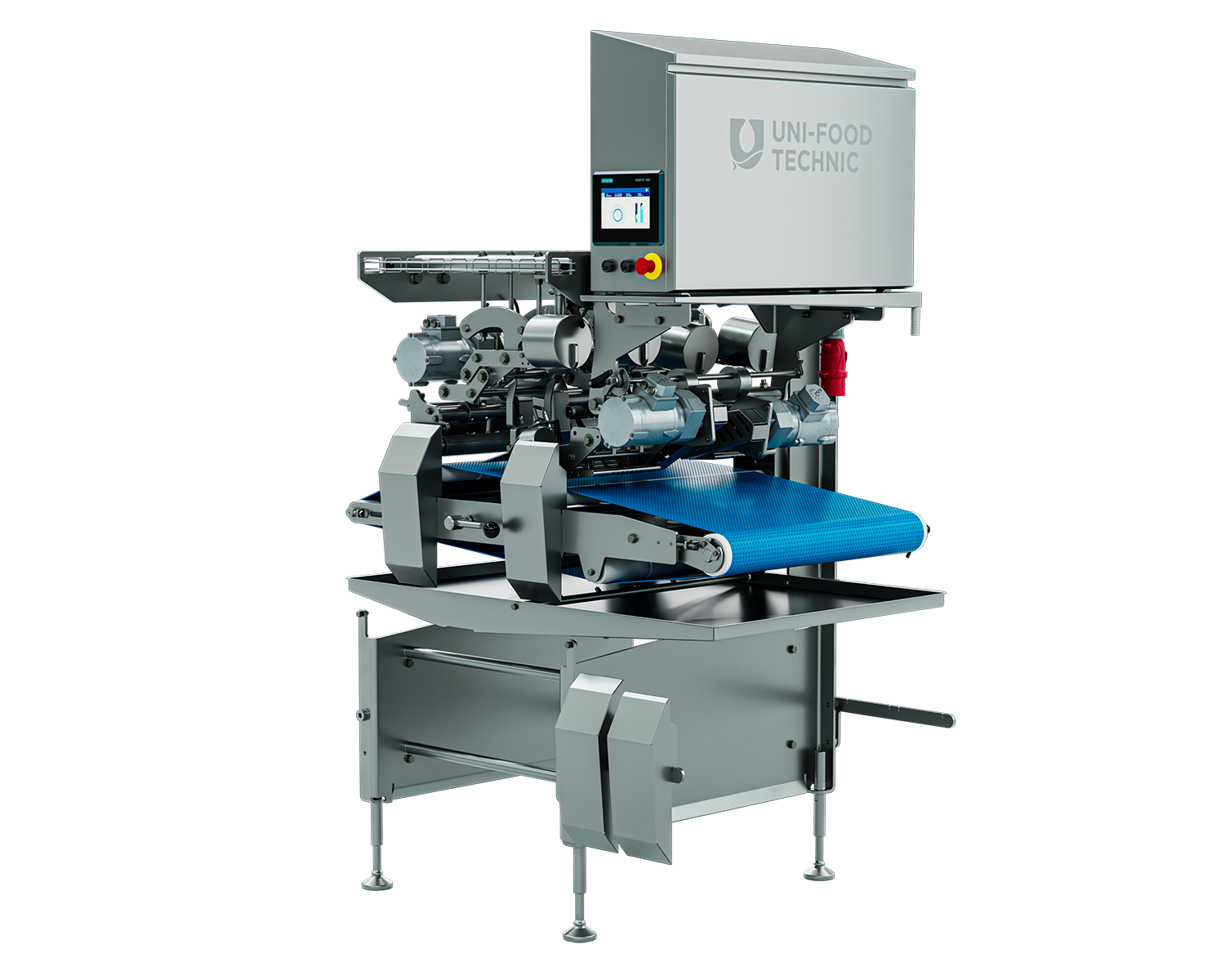

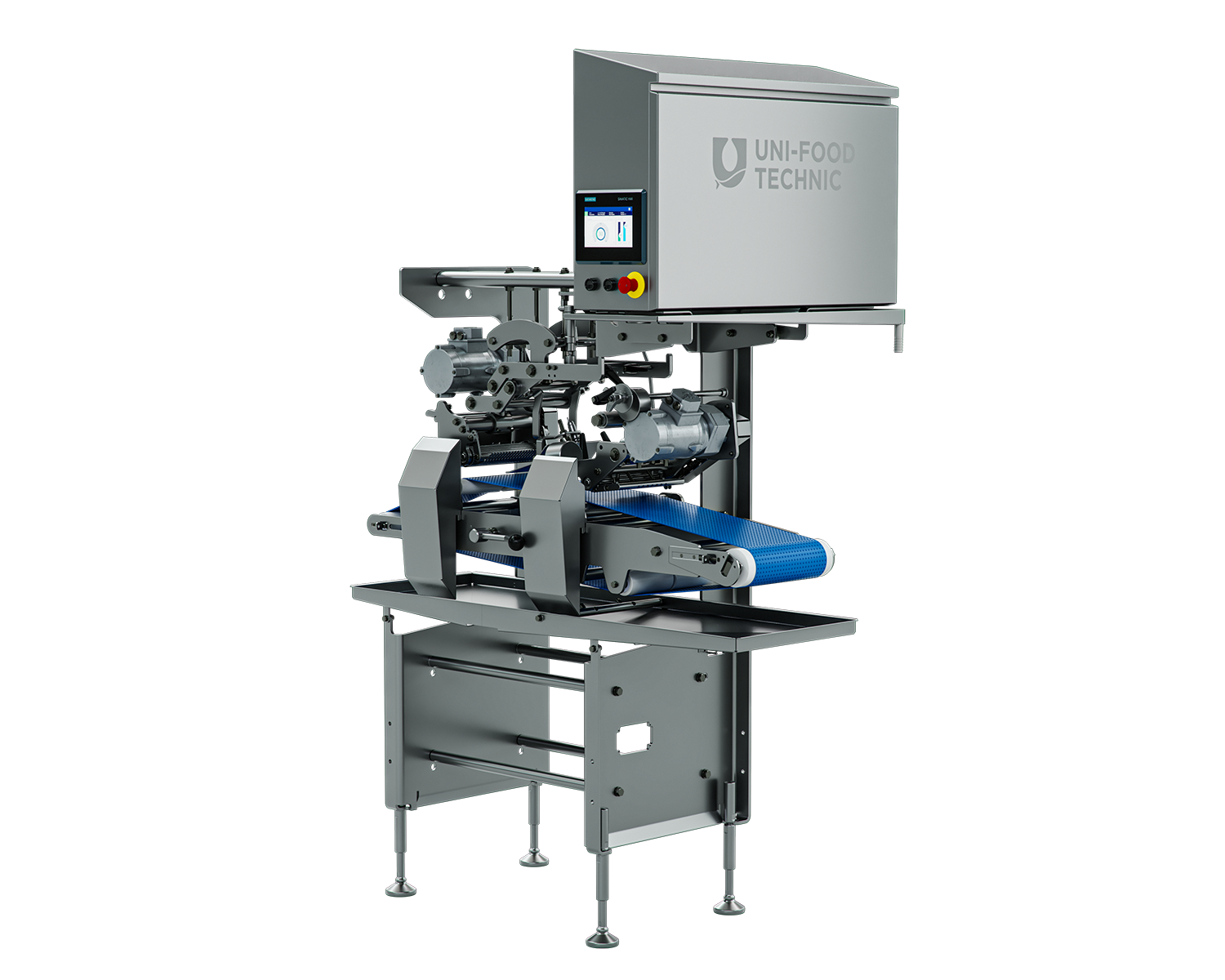

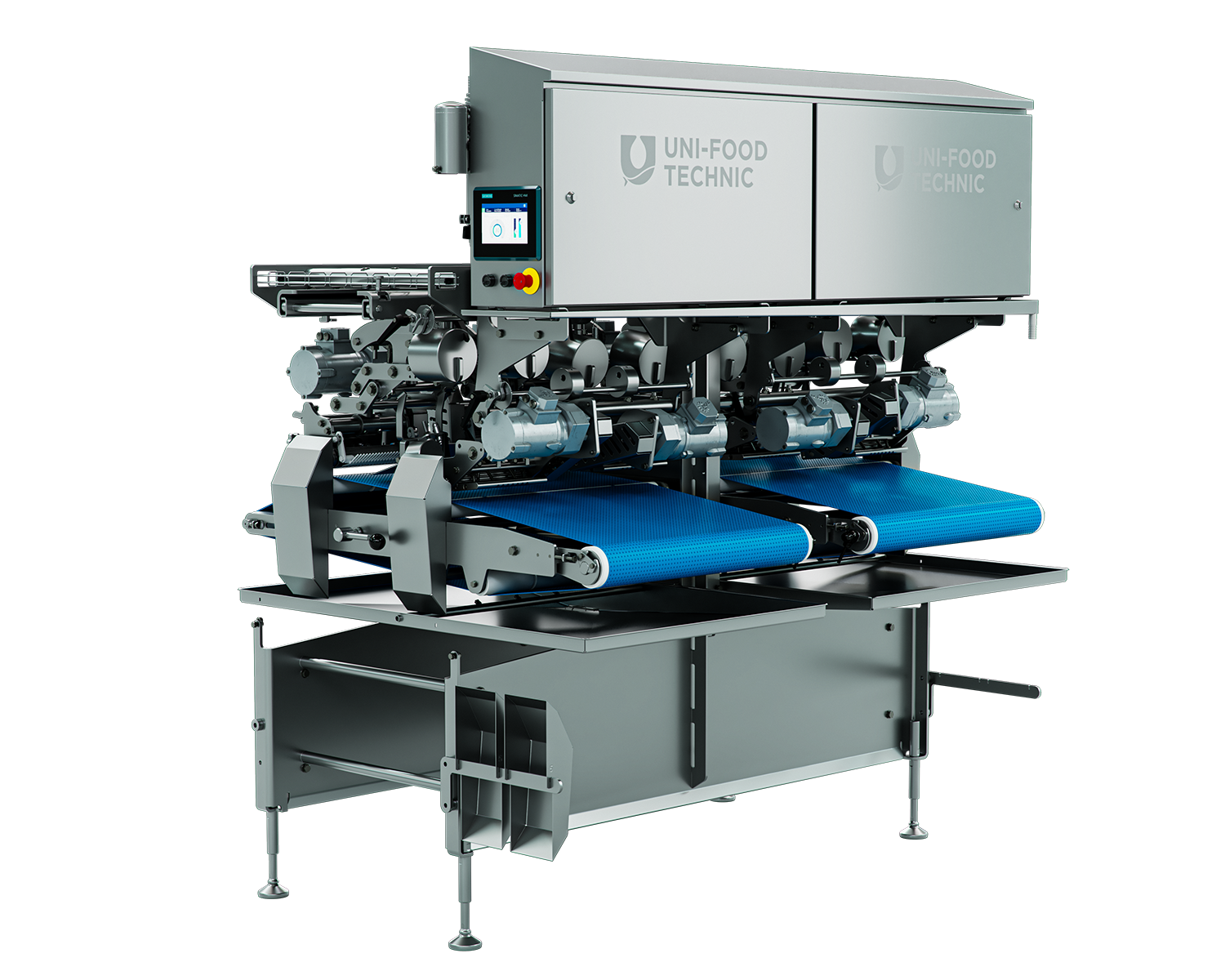

The Pin Bone Remover 500 is an intelligent and automatic pin bone remover developed especially for salmon and trout. It comes in a single, double, quadro, and six-version which indicates the sets of knives and rollers.

Download brochure

The automatic machine works as a one-way flow with automatic in-feed.

The Pin bone Remover 500 uses water for cleaning the roller and knife when processing fresh fillets, and air is used with smoked fillets. The standard machine comes with water cleaning, but, as an option, it can be mounted with both water and air connection to be used for both kinds of products.

The machine is robust as it has a strong stainless-steel construction. All parts are produced in FDA-approved materials.

	Operators	Capacity	Process temperature*
Single	0 – 1 person	10 – 15 fillets/min	4 °C – 6 °C
Double	0 – 1 person	15 – 30 fillets/min	4 °C – 6 °C

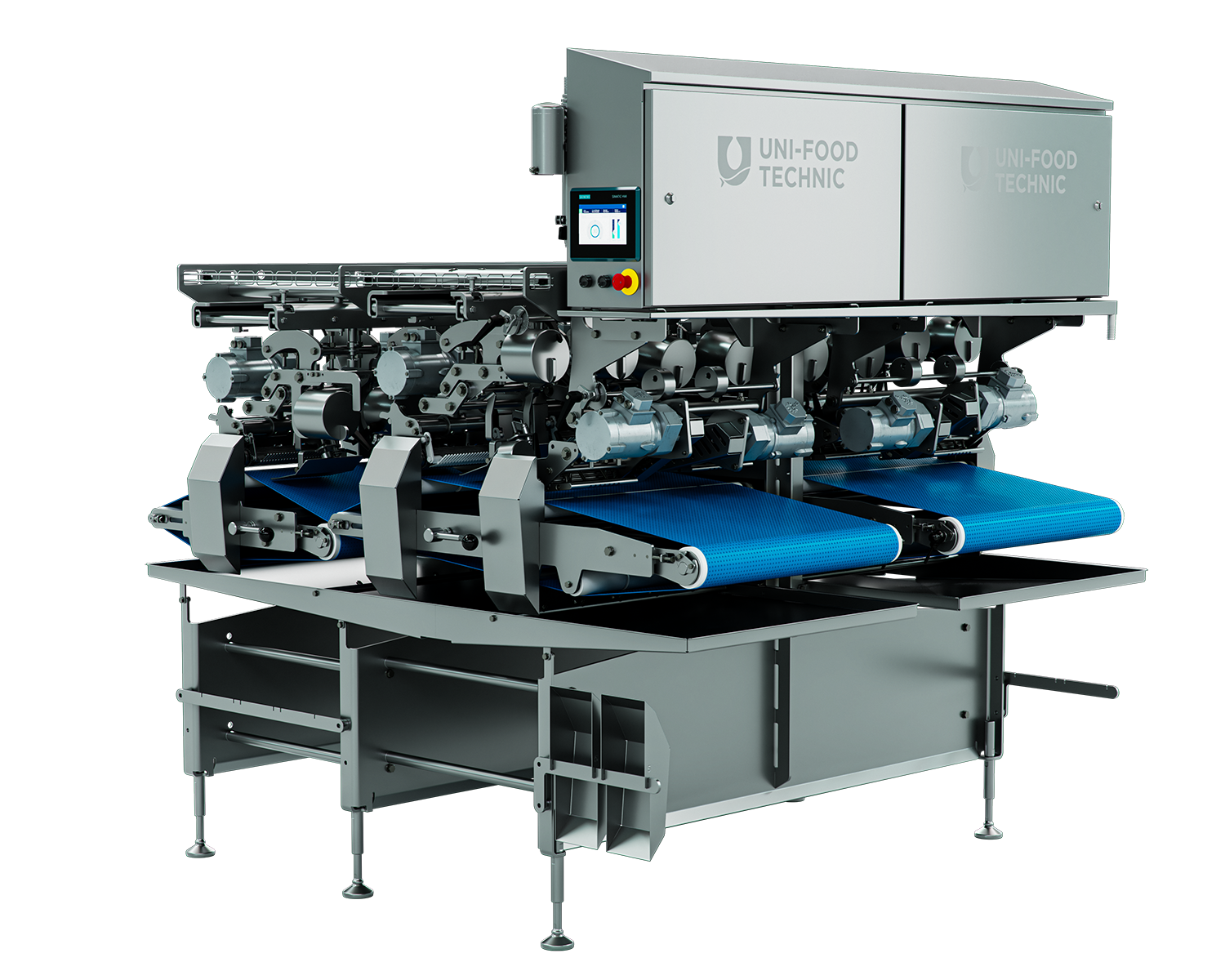

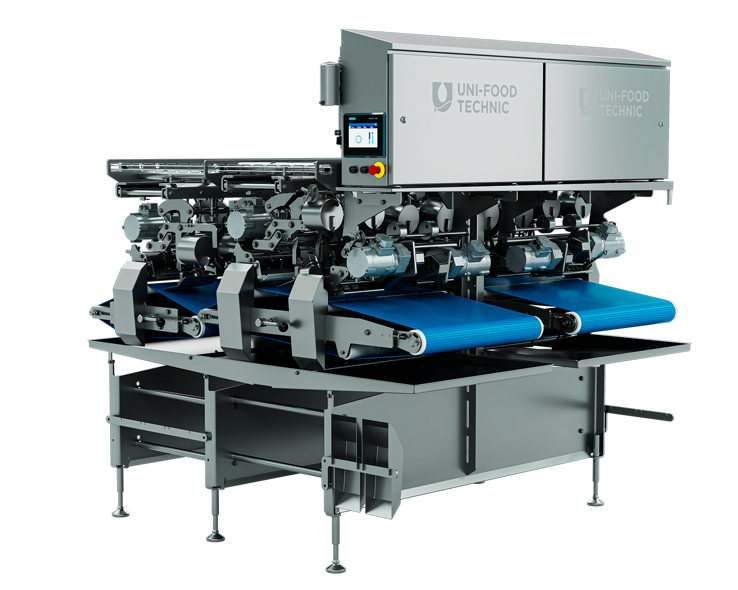

Quadro	None	Up to 44 fillets/min	4 °C – 6 °C
Six	None	Up to 66 fillets/min	4 °C – 6 °C

* Not suitable for frozen fillets

- Neck bone roller (NK)
- Raising roller
- Active tail system
- In-feed roller guide system
- Water saving system
- Complete vacuum system

Salmon pin bone removal for your capacity need

The intelligent machine removes up to 95% of all the pin bones, whether the fillet has been pre-handled in a filleting machine or if it is hand-cut. The capacity of the machine depends on the model, allowing a range from 10-66 fillets per minute to be pin boned.

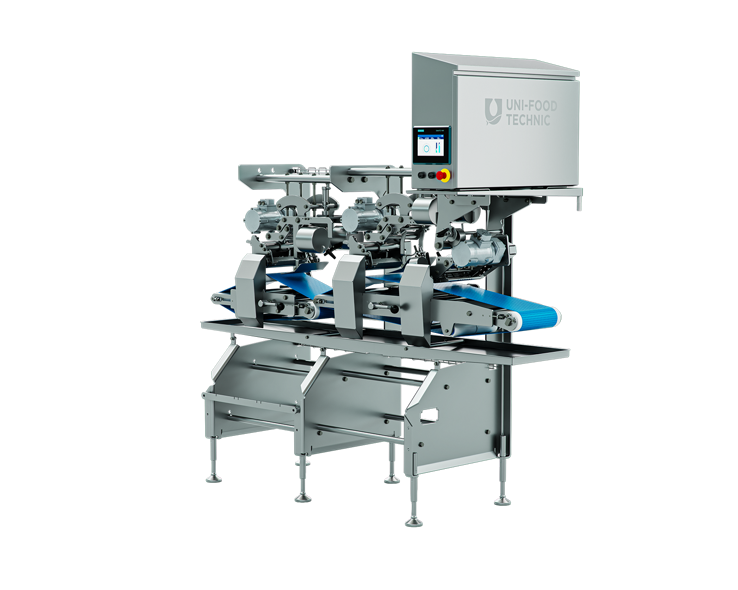

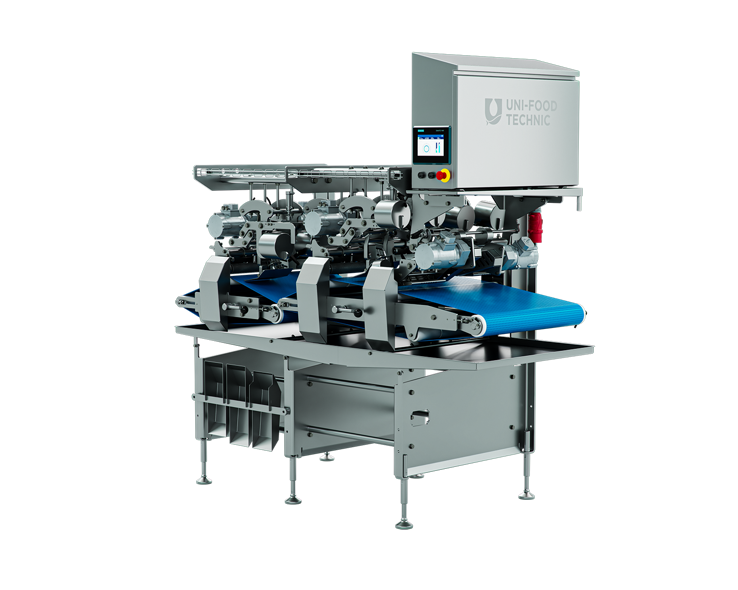

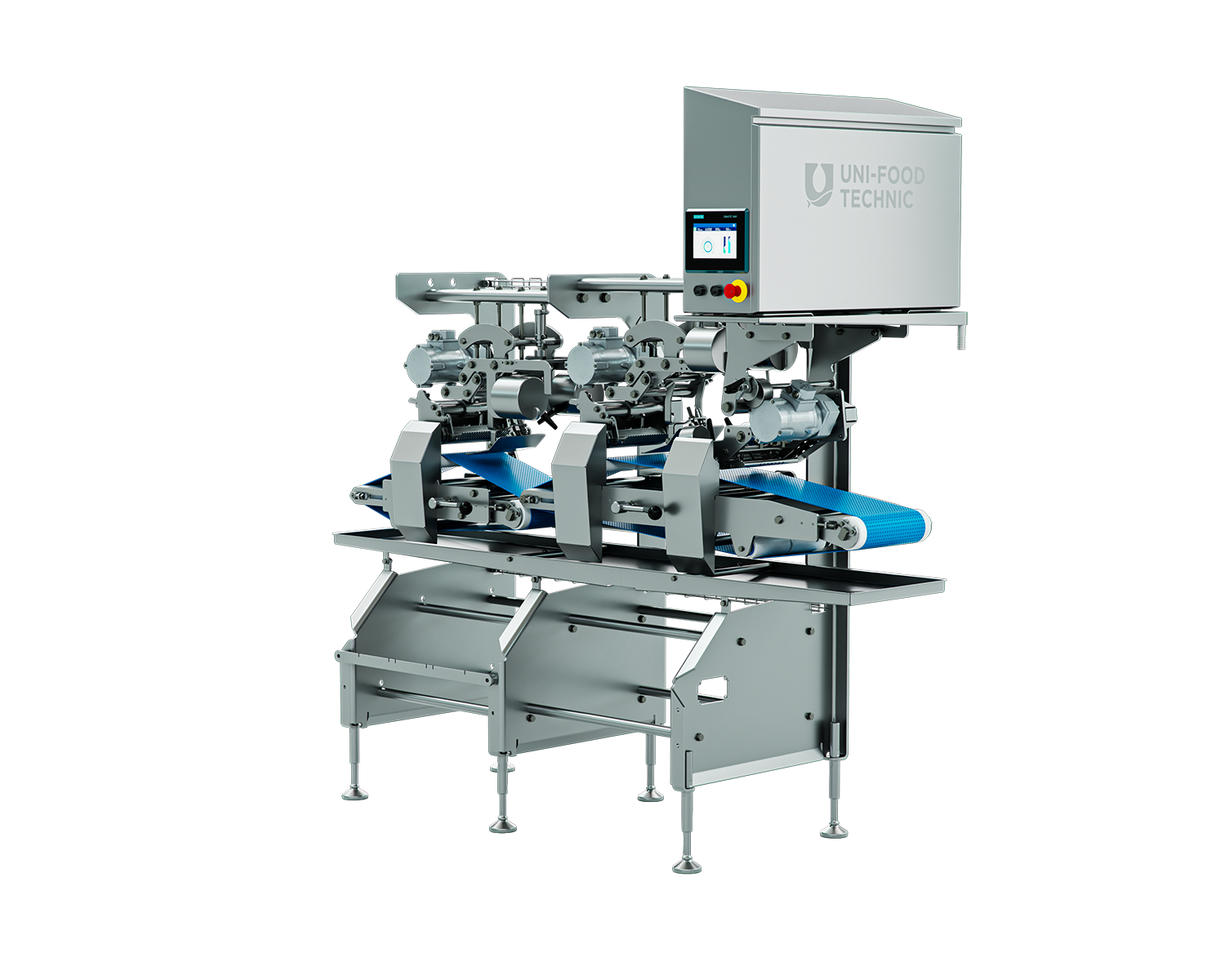

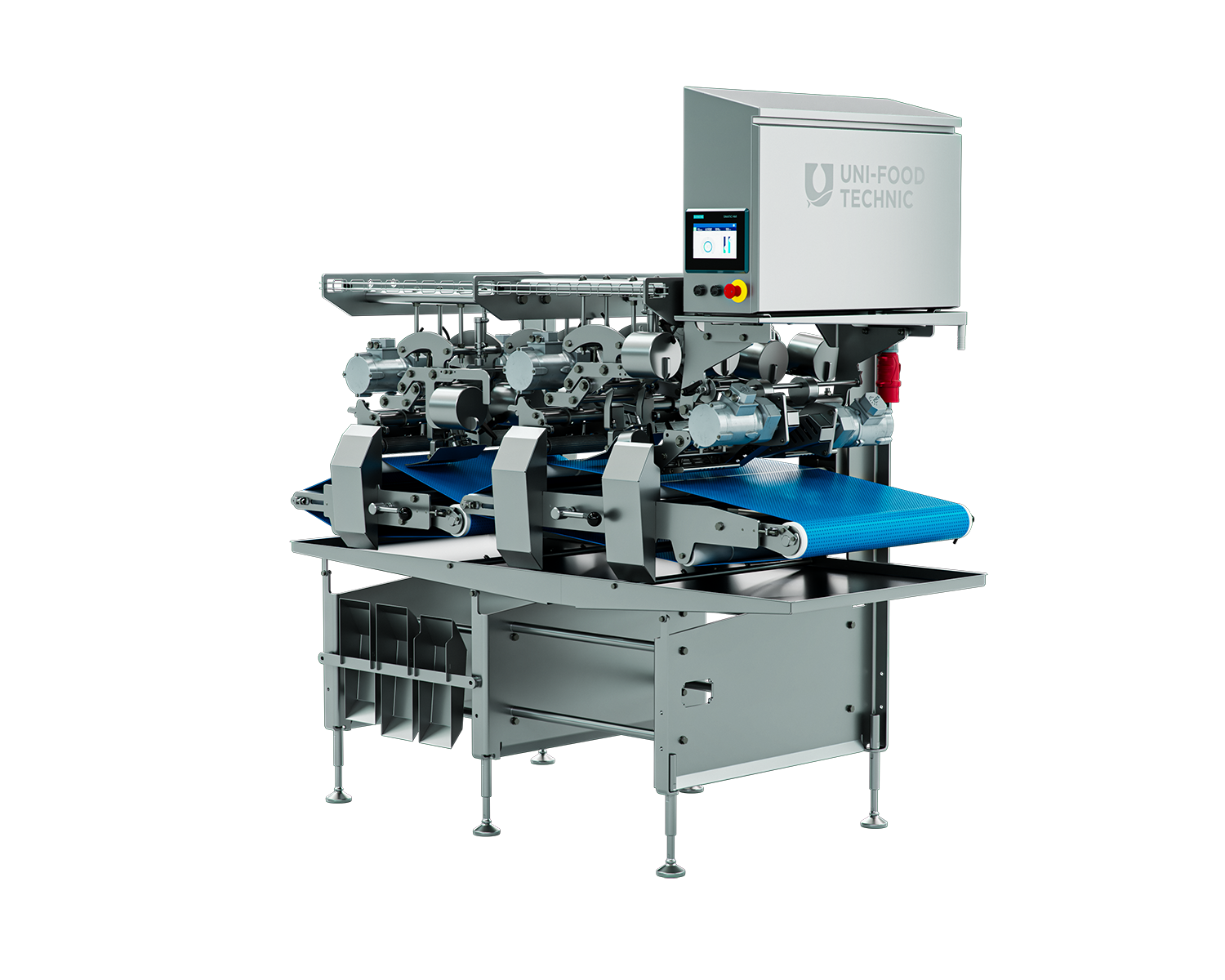

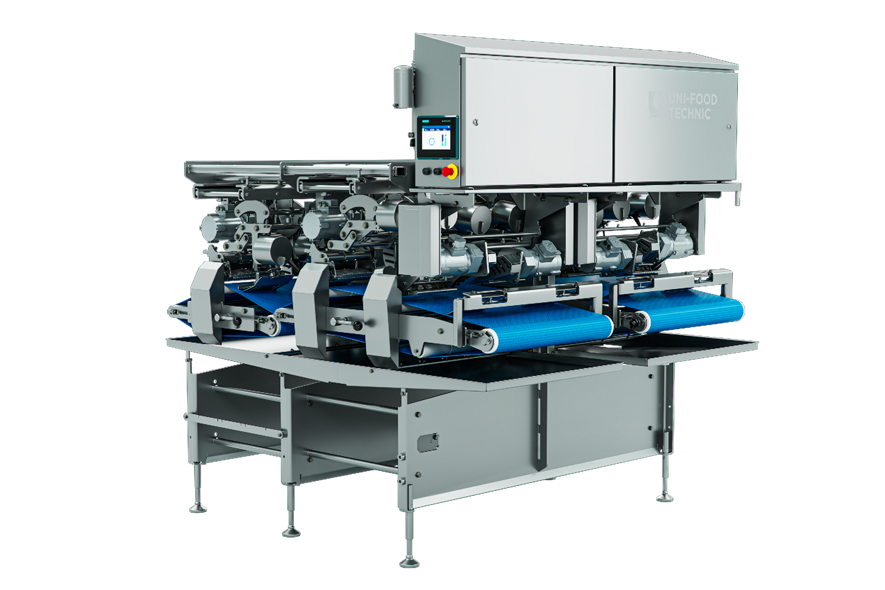

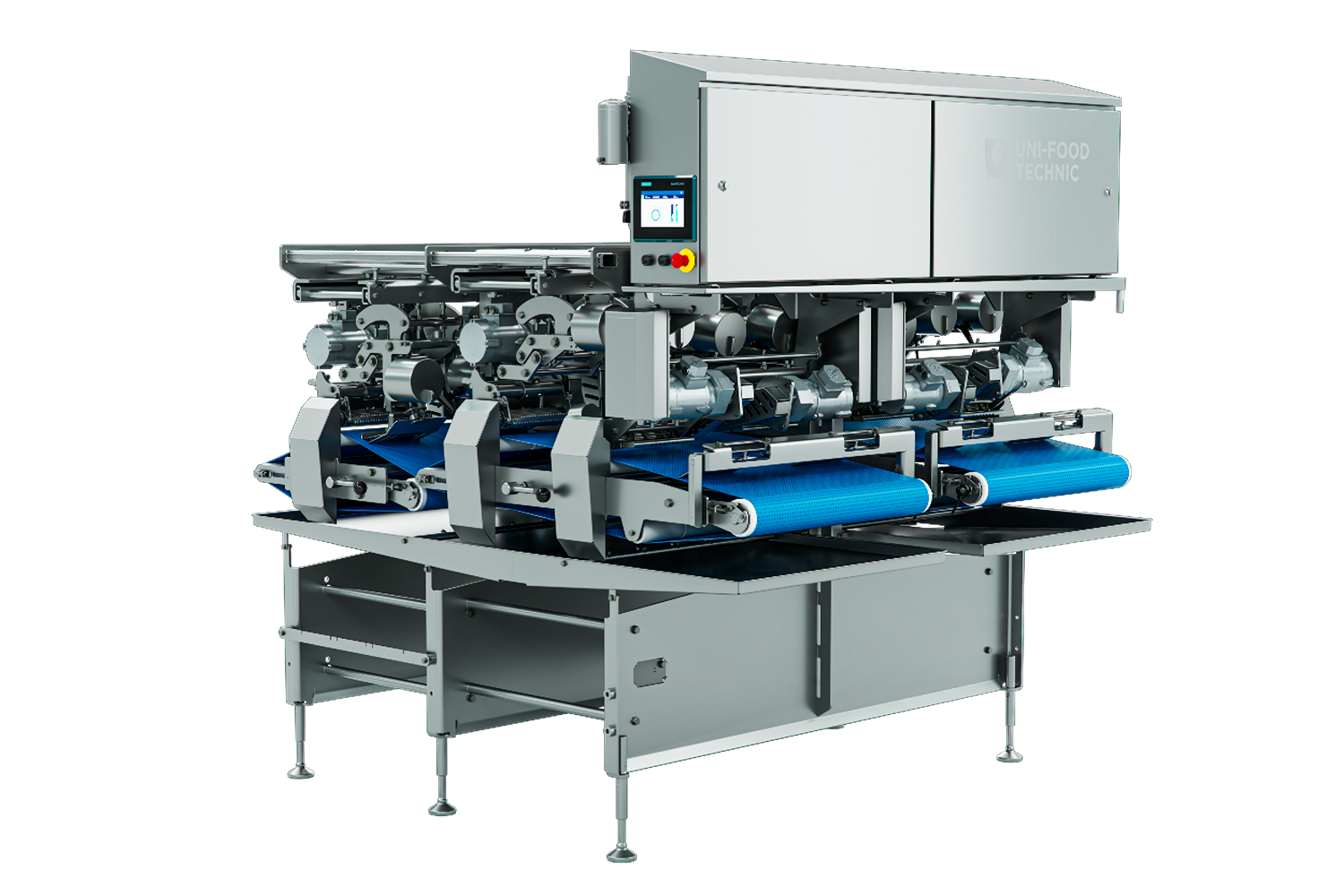

For the removal of the small neck bones, the neck bone roller (NK) is an option. When the neck bone roller is included, the efficient removal of pin bones means that only few resources are needed to remove a very small amount of pin bones after processing.

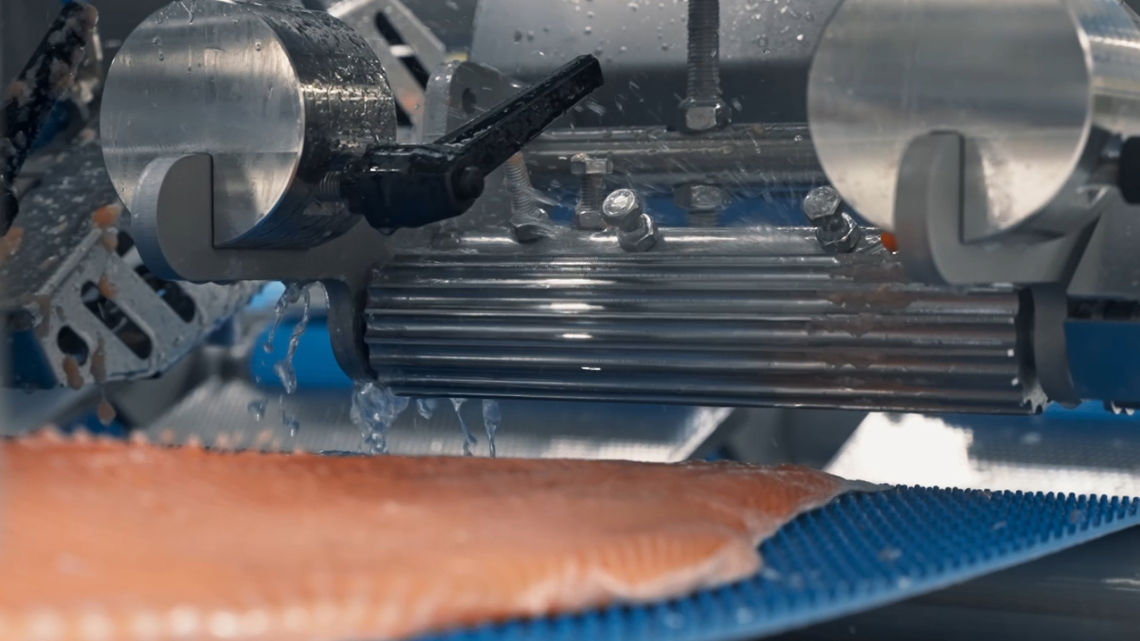

The intelligent pin boning system automatically adjusts the rollers according to fillet size, preventing yield loss in the tail section. Roller pressure is precisely controlled to ensure efficient bone removal while maintaining fillet quality.
